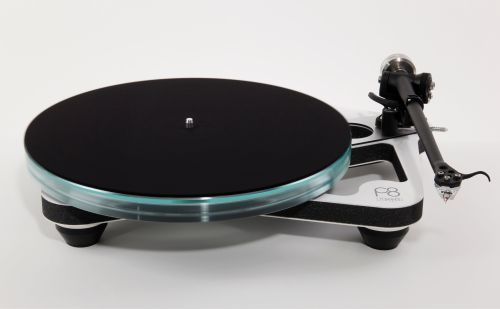

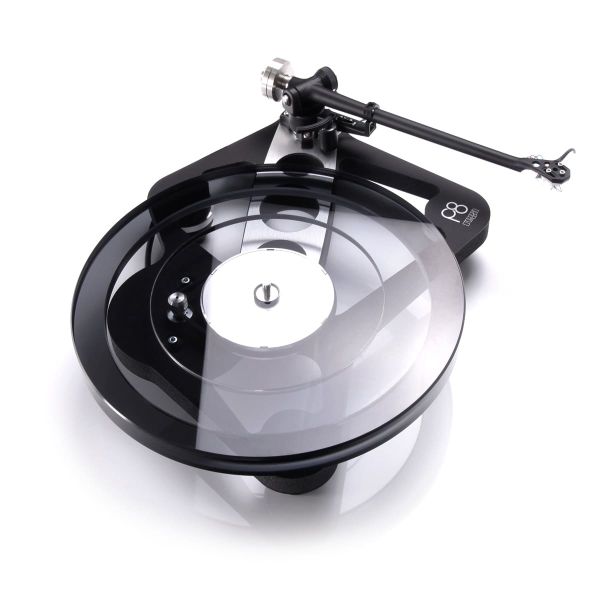

Planar 8 Turntable

The Planar 8 was inspired by the ultimate Rega turntable, the ‘Naiad’. We decided early on that instead of an evolution of the previous RP8, the new Planar 8 was to be developed and engineered to encapsulate the essence of ‘Naiad’ at an affordable price. Our aim was to deliver a level of performance far beyond what has been achieved at this price point before.

Hi-Fi Choice Group Test Winner 2023

https://www.rega.co.uk/pdf/HFC-PL8-GT-Decks-Rega-Reprint-1.pdf

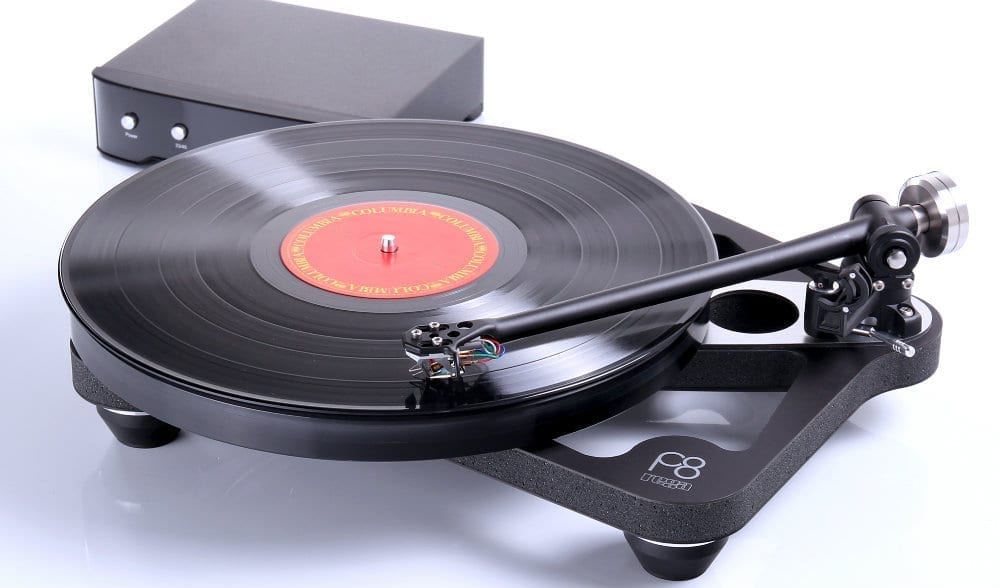

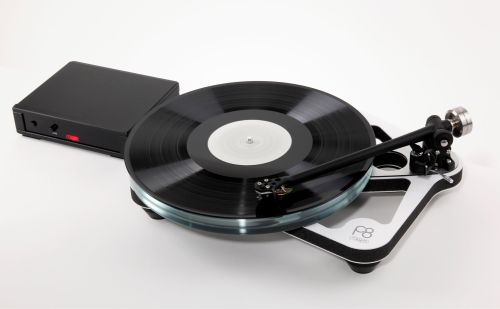

Every aspect of the Planar 8 is engineered to extract as much detail from the vinyl surface as possible. Rega uses the most advanced materials and engineering solutions built around a supremely lightweight plinth to ensure the greatest level of performance. The Planar 8 is supplied with the new RB880 tonearm and Neo PSU as standard which offers electronic speed change, advanced anti-vibration control and user adjustable electronic fine speed adjustment to ensure total accuracy and control over the motor. The outer frame of the previous model has now been removed and a new stylish, removable, single piece dustcover has been introduced further reducing the overall mass of the turntable.

• Ultra Lightweight Plinth

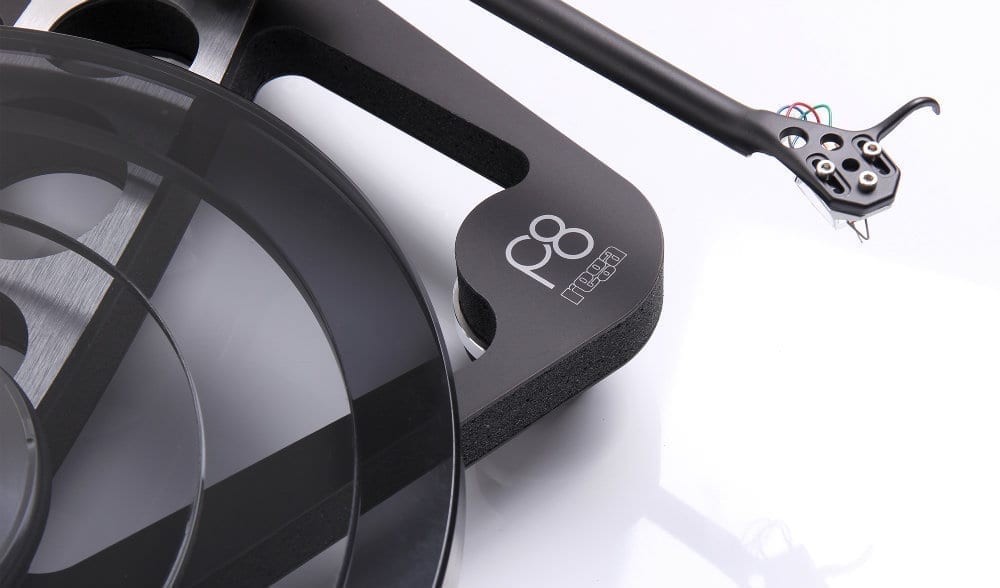

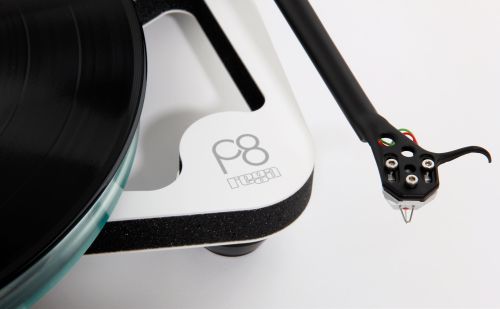

  The Planar 8 is the second Rega turntable constructed using our latest ultra-lightweight Tancast 8 polyurethane foam core (a material developed for the aerospace industry). This material is sandwiched between two layers of HPL (high-pressure laminate).

  HPL is exceptionally thin and extremely rigid. This new construction makes the new Planar 8 skeletal plinth 30% lighter than the original RP8 while offering increased rigidity over the previous model.

  Double Brace Technology

  A super lightweight plinth combined with a phenolic resin double brace mounted specifically where the increased rigidity is required (between the tonearm mounting and the main hub bearing) forms a structurally sound “stressed beam” assembly. This rigid plinth design prevents energy absorption and unwanted resonances which will add unnatural distortions to the music.

  Equally, heavier mass can transfer more unwanted energy such as motor or bearing noise directly into the rotating record. The use of braces instead of the complete skin allows double thickness phenolic resin in these key areas while providing further weight reduction to the plinth which directly addresses the issue of mass absorption and unwanted energy transmission.

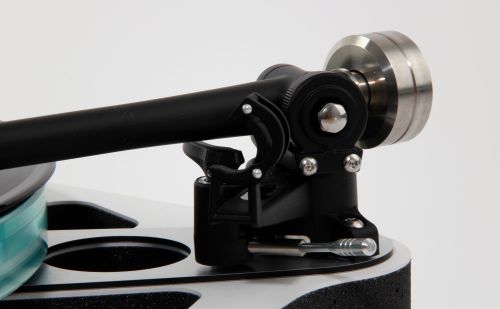

  RB880 Tonearm

  For the new RB880 we have introduced an improved vertical bearing assembly constructed using an aluminium and stainless-steel, low mass assembly with vastly improved stability and rigidity.

  This tonearm is using our advanced preloaded zero tolerance bearing assembly adjusted to less than 1000th of a mm, this gives friction-free movement and zero levels of unwanted play. This subtle but effective new structure is only visible via small windows at the rear of the new bias housing assembly.

  A thinner stainless steel balance weight is used, allowing greater adjustability and compatibility. Finally, the RB880 is terminated with a re-designed, low capacitance phono cable terminated with high quality, locking phono plugs to ensure the best possible connection.

  Hub Bearing Assembly

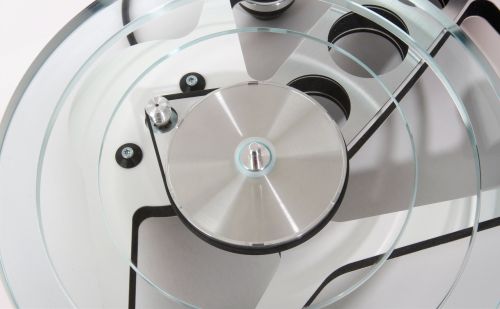

  The Planar 8 uses a new low mass central bearing assembly. A single piece machined aluminium sub-platter and hardened tool steel spindle run inside a custom brass housing which is cleverly mounted within the chassis. This new mounting is designed to eradicate unwanted potential energy being transferred or stored in the plinth.

  Super Flywheel Effect Triple Layer Glass Platter

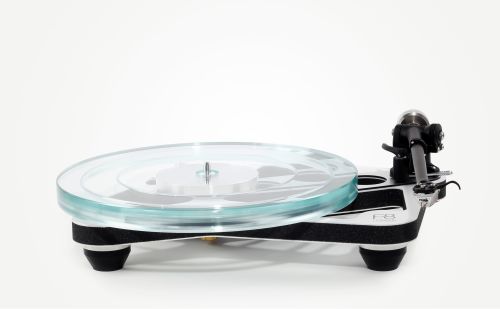

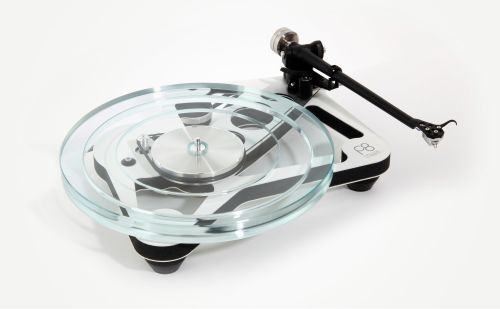

  The Planar 8 uses a three-piece laminated glass platter which is the result of collaboration with a British glass engineering company. This brand new platter is constructed from two different high-quality Pilkington glasses.

  As a general rule, the only part of a turntable that requires extra mass is the turntable platter in order to achieve constant rotational speed. However, a heavier platter creates more problems for the main bearing design so again an ideal compromise creates the best solution.

  Practically this means keeping as much of the mass to the outside rim of the glass platter to create more flywheel effect but keeping the inside of the platter as light as possible without sacrificing stiffness.

“Rega’s Planar 8 really advances the idea of what constitutes state-of-the art vinyl playback at this price. It has the remarkable ability to thrill and entertain and is an exceptionally well thought-out design that really delivers.”

Hi-Fi Choice

Technical Specifications

• Selectable Speed: 33 1/3 rpm, 45 rpm
• Planar 8 Turntable Dimensions (with dustcover fitted) (W x H x D) 420 x 125 x 315 mm

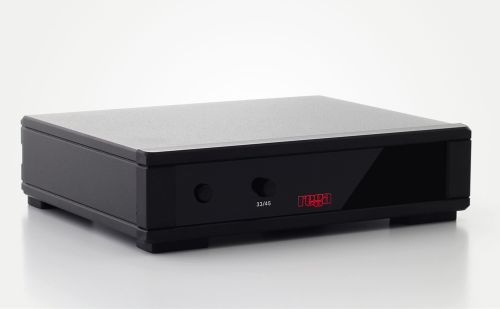

• Neo PSU Dimensions (W x H x D) 180 x 50 x 155 mm
• Turntable Weight 4.2 kg
