Rega Solis Reference Power-Amplifier

Experience the pinnacle of audio performance with the Solis stereo power amplifier. Designed and hand-built in England, this powerhouse is meticulously engineered for those who demand the very best in audio quality, design, and craftsmanship. Each component has been carefully selected for its superior audio properties, ensuring that every track you play, in every format, is delivered with breath-taking clarity and detail.

Next level performance, zero compromise

Engineered to drive the most demanding of speakers, the Solis is the perfect partner for the Mercury Pre-amplifier.  Our engineering team have spent the last four years obsessively developing and fine tuning the circuit to create the most engaging and accurate performance. The advantage of using a separate chassis for the pre-amplifier and power amplifier allows the low voltage, sensitive circuitry to be isolated from the high current, power amplifier circuitry. This reduces interference between the pre-amplifier and power amplifier leading to a less noisy signal path and a cleaner signal. Also compatible with the Rega Aethos which can be used as a pre-amplifier.

Key Features

• Fully symmetrical discrete circuitry in the signal path

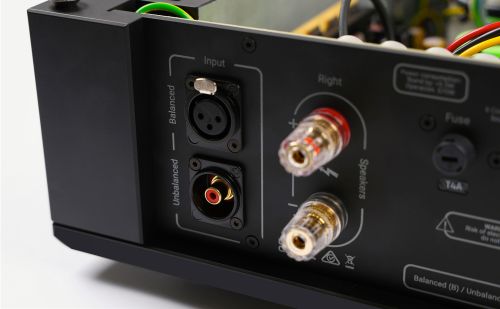

• Balanced and unbalanced inputs
• 168W into 8Ω / 305W into 4Ω
• Short circuit protection
• Thermal cut-out and DC Protection
• Standby mode (user selectable)
• 12V trigger
• Independent MUTE function
• Compatible with Mercury pre-amplifier and Aethos stereo amplifier (used as a pre-amp)

• Amplifier Circuit

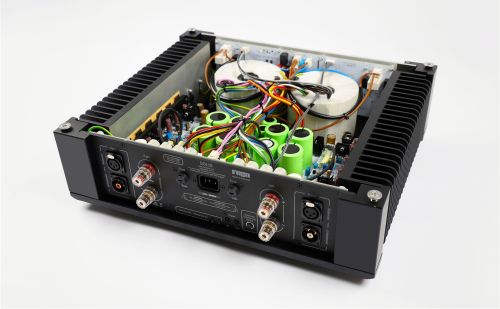

  The Solis uses a fully symmetrical circuit throughout with a differentially driven, low distortion, high linearity and bandwidth common base voltage amplifier driver stage. This type of symmetrical circuit topology will provide the necessary voltage swings to enable the Solis to drive any speaker system with the minimum of distortion. Twelve (six per channel) Sanken 130-Watt 15A high frequency, multi-emitter output transistors are used in a “triple” high current output stage enabling the Solis to drive even the most awkward of speaker systems with ease. The cascoded differential input amplifier uses two, low noise, LED referenced, current generators. The open & closed loop feedback levels and gain bandwidth product components are optimised to give a tight and controlled sound stage, especially at the low frequency end of the audio range. Nichicon audio grade capacitors are used in critical bypass and decoupling positions. Electrolytic capacitors have been bypassed with polyester capacitors where necessary, improving on the HF performance. HTR non-inductive resistors are used in the output stage. All these features amalgamate to create the supreme level of performance found in the Solis.

  • Power Supply

    The Solis uses two, low-noise, custom designed, 330VA toroidal transformers using high-grade fully bonded core material.  This reduces mechanical noise from the transformer when the transformers are operating under arduous mains (line) conditions with high levels of asymmetric mains (line) distortion. These transformers combined with 40,000µF of Rega K-Power smoothing capacitors per channel, provide ample current to drive the hardest of loads, effectively doubling the power into a 4Ω from an 8Ω load. All the power supplies utilise fast recovery rectifier diodes throughout. (Fast diodes generate less high frequency switching noise therefore giving rise to a cleaner DC). The input and low-level driver stages are fed from a regulated symmetrical tracking power supply with a low noise voltage reference, which provides a fully stabilised, low noise voltage, ensuring the highest level of sonic purity. All the dedicated audio power supplies feed only the audio circuits.
